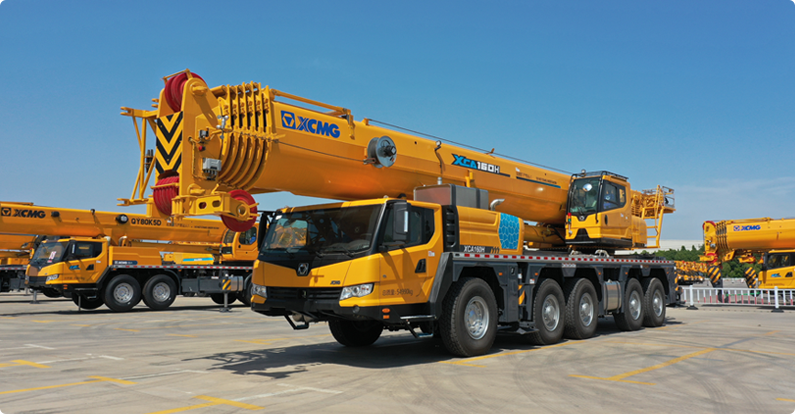

The XCMG XCA160H All Terrain Crane has a 78 m long 7-section telescopic boom. With a 34.5 m jib, max. boom and jib length can reach 107.4 m. Five-axle all-terrain crane chassis, dual-mode drive system with real-time switching. Free switching of three-axle and four-axle drives can provide better roadability to accommodate various road conditions; All-axle steering with six steering modes contributes to excellent maneuverability and better adaptability in confined operating areas. A counterweight of 24 tons can be carried on the crane during short-distance work site transfers, which can meet the requirement of 40% working conditions. (Full counterweight 56 t).
Weichai diesel engine, with rated power 390kW/190Orpm, and max. torque 2500Nm/1000-1400rpm, 12-speed ZF automatic transmission, Max. travel speed 80 km/h; max. class ability is 60%.
All-axle steering is realized with a small turning radius; Three- or four-shaft drive-free shifters are also available. The three-axle drive is used for on-road driving, with high driving efficiency and the four-axle drive can be used for off-road driving and job site transfers with industry-leading 60% tilt capability.
Highway mode, normal road mode, off-road mode, and heavy-duty job site transfer mode are available. Stronger adaptability in traveling working conditions.
Engine powerkw/rpm390/1900
Max gradeablity%60
Fully extended boom lengthm78
Base boom max. load momentkN.m5145
Fully extended boom max. load momentkN.m2115
Min. ground pressuremm307
