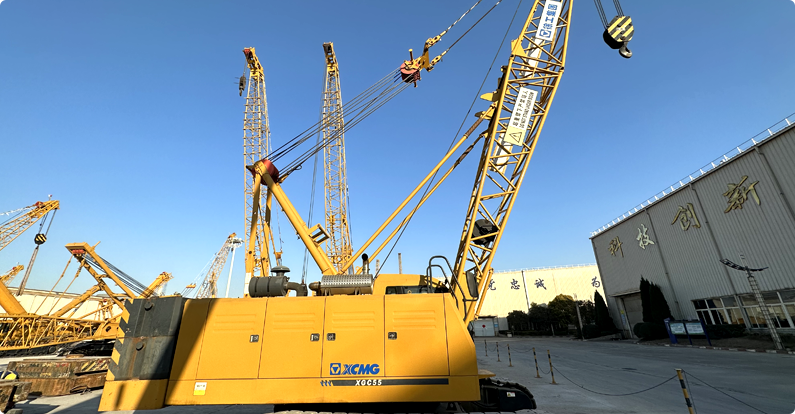

XCMG XGC55 uses Weichai WP7G270E301 straight line, six-cylinder, water-cooled, turbocharging intercooler, electronic fuel injection, four-stroke eco-friendly diesel engine. With the overall weight of the counterweight is 16.2t, which is installed on the back of the turntable through the shaft suspension-type connection.
| Item | Unit | Parameter |
|---|---|---|
| Payload | kg | 55000 |
| Engine power | kw/rpm | 199/2000 |
| Boom length | m | 13-52 |
| Max rated load capacity | t.m | 203.5 |
| Max rated lifting capacity | t/m | 55/3.7 |
| Max slewing speed | rpm | 2.45 |
| Average ground pressure | MPa | 0.06 |
