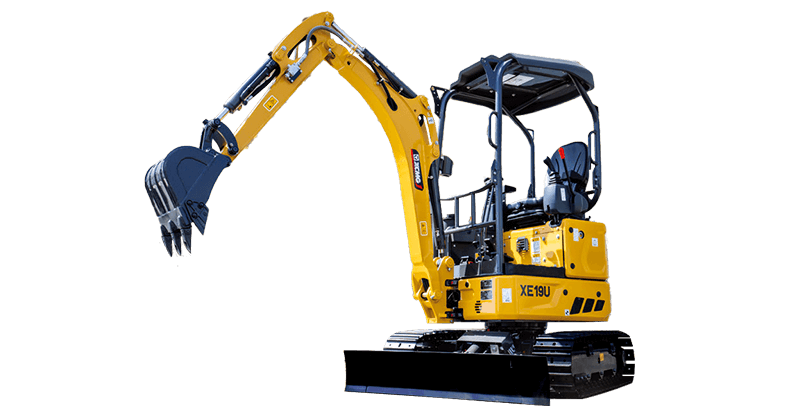

The XE19U is a versatile mini excavator widely applied in various sectors such as hydropower, transportation, municipal engineering, farmland renovation, and oil pipeline construction. Powered by a 15.4 kW high-performance engine, it delivers strong power, efficient operation, and excellent breaking capability.
One of its standout features is the high-torque automatic dual-speed travel motor the largest in its tonnage class allowing smooth travel and easy maneuvering even on muddy or uneven terrain. With a compact short-tail design, telescopic undercarriage, and deflectable boom, the XE19U is built for flexible and precise operation in narrow or confined spaces.
| Parameter | XE19U |
|---|---|
| Operating weight(kg) | 1795 |
| Engine power(kW/rpm) | 15.4/2400 |
| Bucket capacity(m³) | 0.04 |
| Maximum torque/speed（N.m） | 70.3/1600 |
| Max. Tractive Force (kN) | 21.4 |
| Bucket digging force（kN） | 16 |
| Arm digging force（kN） | 10 |
| Max. digging height (mm) | 3420 |
| Max. digging radius (mm) | 4055 |
| Travel speed（H/L） | 4.2/2.2 |
| Swing speed（r/min） | 10 |
| Min. ground clearence (mm) | 148 |
| Track shoe width (mm) | 230 |
