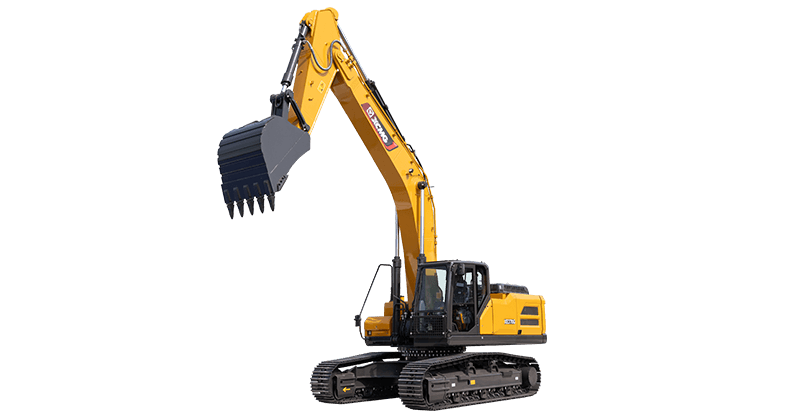

The XE370G is a 38.5-ton crawler excavator built for heavy-load operations and complex job sites. It features a 212 kW Isuzu AE-6HK1XWSC-02 engine and a 2.1 m³ bucket, offering strong digging capability. The high-pressure common rail engine and intelligent electronic control system ensure fuel efficiency, power balance, and reduced emissions. The hydraulic system includes dual 306 L/min pumps and delivers up to 210 kN bucket force and 305 kN traction force.
The machine is equipped with a reinforced lower frame, durable bucket, and a pressurized cabin with auto A/C, a suspension seat, and an 8-inch touchscreen. With excellent structural strength and easy maintenance, the XE370G performs reliably under demanding conditions.
| Parameter | XE370G |
|---|---|
| Operating weight(kg) | 38500 |
| Engine power(kW/rpm) | 212/2000 |
| Bucket capacity(m³) | 2.1 |
| Maximum torque/speed（N.m） | 1080/1500 |
| Max. Tractive Force (kN) | 305 |
| Bucket digging force（kN） | 250 |
| Arm digging force（kN） | 210 |
| Max. digging height (mm) | 10035 |
| Max. digging radius (mm) | 10640 |
| Travel speed（H/L） | 5.0/2.9 |
| Swing speed（r/min） | 9.9 |
| Min. ground clearence (mm) | 540 |
| Track shoe width (mm) | 800 |
