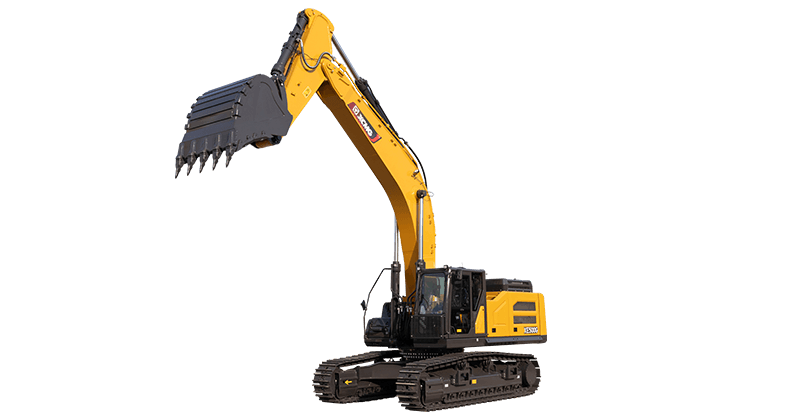

The XE500G is a 49.7-ton crawler excavator designed for large-scale excavation projects in infrastructure, water conservancy, real estate, and mining. It is powered by a 343 kW Cummins X12 low-speed, high-torque engine and equipped with a 2.8 m³ bucket. The electronically controlled positive flow hydraulic system, with dual 360 L/min pumps, delivers smooth, efficient performance and reduces fuel consumption. The 690 L fuel tank increases endurance by 30%, extending continuous operation.
The pressurized cabin features automatic hot/cold A/C, a suspension seat, and an 8-inch touchscreen for better comfort and control. With 275 kN bucket force, 261 kN arm force, and 330 kN traction, the XE500G excels in heavy-duty operations under challenging conditions.
| Parameter | XE500G |
|---|---|
| Operating weight(kg) | 49700 |
| Engine power(kW/rpm) | 343/1800 |
| Bucket capacity(m³) | 2.8 |
| Maximum torque/speed（N.m） | 2170/1400 |
| Max. Tractive Force (kN) | 330 |
| Bucket digging force（kN） | 300 |
| Arm digging force（kN） | 261 |
| Max. digging height (mm) | 10340 |
| Max. digging radius (mm) | 11225 |
| Travel speed（H/L） | 5.4/3.2 |
| Swing speed（r/min） | 8 |
| Min. ground clearence (mm) | 560 |
| Track shoe width (mm) | 600 |
