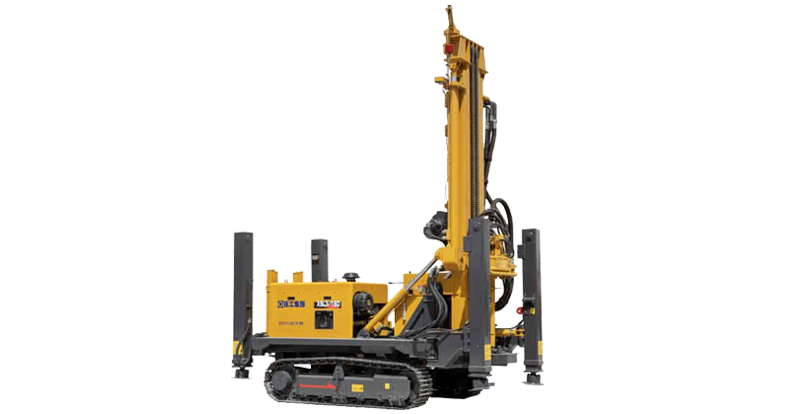

Deep Well Drilling Rig
XSL3/160
  • Drilling Depth(m)
    300 (⌀89)
  • Max Diameter of Working Floo(mm)
    ⌀300
  • Max Lifting capacity(kN)
    160
XSL3/160
  • FEATURE
  • Parameter
  • Inquiry
FEATURE
XCMG Deep Water Well Drilling Rig 300 Meter Machine XSL3-160
XCMG water well drilling rig 300-meter machine XSL3-160 uses full hydraulic control and the top drive to drive the rotation of drilling tools with very high drilling efficiency.
Reasonable overall layout uses the tractor-mounted or all-terrain chassis for transportation with good manoeuvrability. Very flexible in difficult roads, it can be widely used in many fields, such as resource exploration of hydrology wells, coalbed methane, shallow layers of shale gas, terrestrial heat, etc. It can also be used for coal-mine gas exploitation or salvage work.
The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands of well-drilling in different terrain strata.
Parameter
SpecificationUnitParameter
Drilling CapabilityDrilling Depthm300 (⌀89)

Max Diameter of Working Floormm⌀300
Feeding SystemMax Lifting capacitykN160

Max feeding capacitykN80

Max lifting speedm/min32

Max feeding speedm/min60

Strokemm7000 (3800)
Top DriveMax torqueNm6600/3300

Max speedr/min95/190

I.D.mm⌀45

Floating distancemm/

Max tilting angle
/
Deck EngineType/YC4A 125-T300

Rated PowerkW92
Main WinchHoisting capacitykN/
Auxiliary WinchHoisting capacitykN15
Foam PumpMax FlowL/min35

Max PressureMPa4

Max PressureMPa8
GeneratorsPowerkW24

PressureV400

FrequencyHz50
