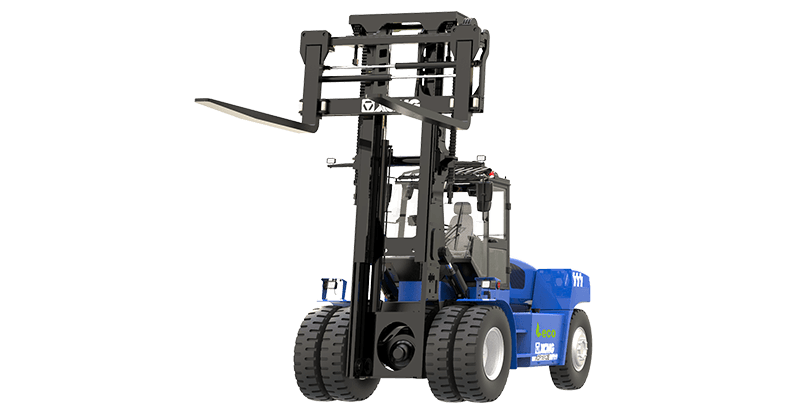

An electric counterbalanced forklift is the key equipment for material handling, widely used in warehouses, cargo storage, ports, cargo transfer in railway or toll road logistic areas, etc.; it has high flexibility and efficiency, a load centre of 1200mm, comfortable driving and easy operation, and convenient maintenance.
| Item | Unit | Parameter |
|---|---|---|
| Battery Capacity | kWh | 282 lithium iron phosphate |
| Max. Motor Power | Kw/Nm | 235/3100 |
| Charging time | h | 1 (Can work 8 hours from 100%-20%) |
| Rated lifting capacity | kg | 25000 |
| Load centre | mm | 1200 |
| Max. Lifting Height | mm | 4000 |
| Min. turning radius | mm | 5890 |
| Wheelbase | mm | 4250 |
| Max. lifting speed | mm/s | 310 (Empty) / 280 (Loading) |
| Max. lowering speed | mm/s | 300 (Empty) / 300 (Loading) |
| Max. traveling speed | km/h | 28 (Empty) / 26 (Loading) |
