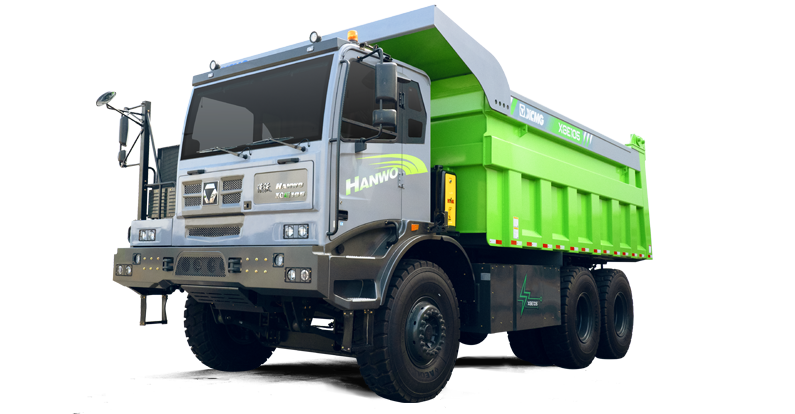

XCMG XGE105 is a wide-body electric dump truck for mining, equipped with a high torque dual motor drive system. It has passed a series of extreme tests such as professional calibration of mining transportation environment and high altitude, high and low temperature, overload, etc., with high strength, stability, and reliability. Equipped with an XCMG gearshift strategy optimized for mining areas and an efficient braking energy recovery system, the motor works over long periods, and braking energy is recovered efficiently to maximize the range and economy of the entire vehicle. Super large cargo box, the maximum capacity can reach 38 square meters to meet a complete set of cargo customization solutions, a variety of box types, and materials to choose from to create a cargo box that is more suitable for exclusive.
| Item | Unit | Parameter |
|---|---|---|
| Payload | kg | 70000 |
| Rated Power | kW | 250× 2 (450) |
| Electric motor power | kWh | 422.91 |
| Battery voltage | V | 618.24 |
| Box size | mm | 6400 x 3400 x 1800 |
| Gradeability | % | >41 |
| Max speed | kph | 40 |
| Drive type | 6*4 | |
| Cargo Volume | m³ | 38 |
