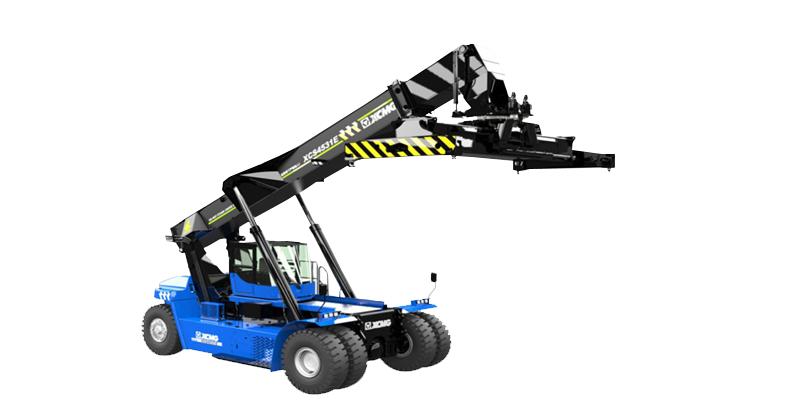

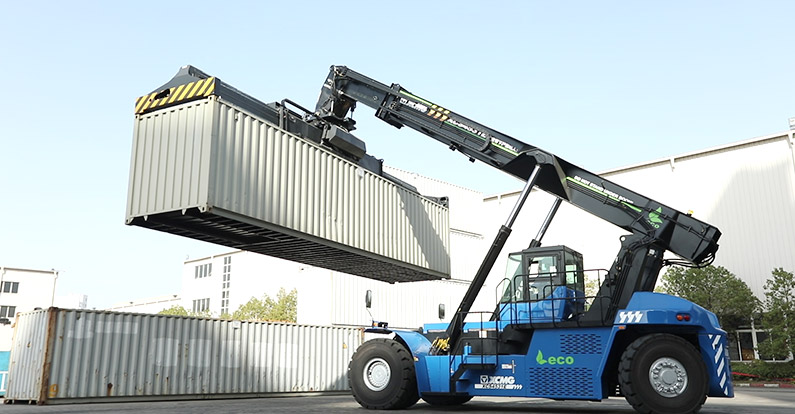

The XCMG reach stacker has the right size appearance and stable operation capability. The wheelbase is 6000mm, which makes the vehicle flexible enough to quickly move containers in tight spaces but still makes the vehicle stable and safe in handling containers. It greatly improves operation efficiency and reduces the unnecessary waste of time and resources.
| Parameter | XCS4531E |
|---|---|
| Battery Capacity(kWh) | 595 lithium iron phosphate |
| Max. Motor Power(Kw/Nm) | 346/3800 |
| Charging time(h) | 1 (Can work 8 hours from 100%-20%) |
| Rated lifting capacity(kg) | 45000 |
| Max. Lifting Height(mm) | 15100 |
| Max. Stacking Level | 5-5-4（8'6）/5-4-3 （9'6） |
| Min. turning radius(mm) | 8000 |
| Max. gradeability(%) | 13 |
| Dead weight(kg) | 71200 |
| Max. lifting speed(mm/s) | 420 (Empty) / 250 (Loading) |
| Max. lowering speed(mm/s) | 360 (Empty) / 300 (Loading) |
| Max. traveling speed(km/h) | 20 (Empty) / 14 (Loading) |
