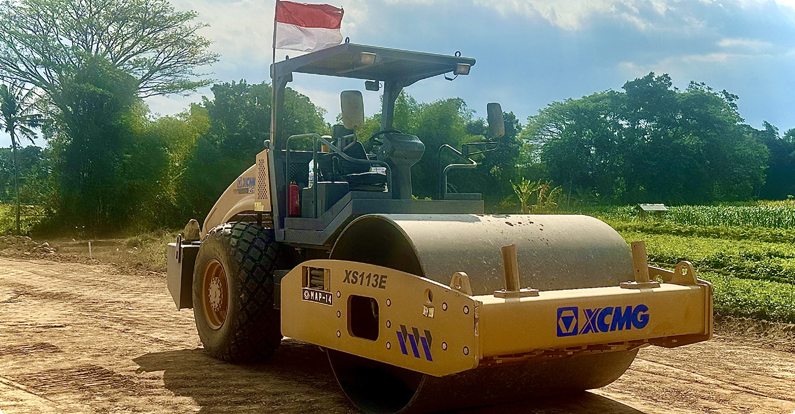

The XS113E is a specially designed double-drive, single-drum, full-hydraulic roller. Featuring high excitation force, high compaction efficiency, and good compaction quality, it is widely used in compaction work on the base layer, sub-base layer, and rock fill for forestry roads, railways, highways, airports, harbors, dams, and industrial construction sites.
| Item | Unit | Parameters |
|---|---|---|
| Operating weight | kg | 10400 |
| Maximum operating weight | kg | 11000 |
| Front axle weight | kg | 5400 |
| Rear axle weight | kg | 5000 |
| Static linear load | N/cm | 284.4 |
| Operating speed | km/h | 0~7.5/0~10 |
| Gradeabillty | % | 40 |
| Minimum turning radius (outer) | mm | 6800 |
| Minimum ground clearance | mm | 412 |
| Wheel base | mm | 3010 |
| Steering angle | o | ±30 |
| Oscillation angle | o | ±10 |
| Vibration frequency | Hz | 32 |
| Nominal amplitude | mm | 1.8/0.9 |
| Excitation force | kN | 240/120 |
| Drum diameter | mm | 1513 |
| Drum width | mm | 2130 |
| Model | 4BTA3.9-C125 | |
| Emission | China stage II | |
| Rated power | kW | 93 |
| Rated speed | r/min | 2200 |
| Spec. | 23.1-26-12G23TL | |
| Ply rating | 12 | |
| Air pressure | kPa | 150-170 |
| Fuel tank | L | 200 |
| Urea tank | L | NA |
