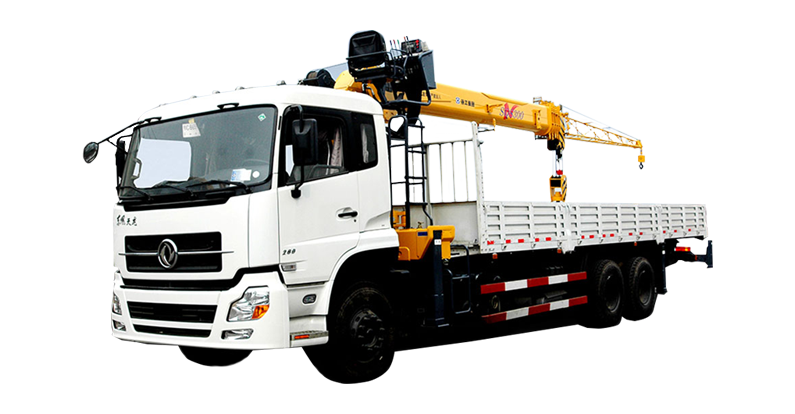

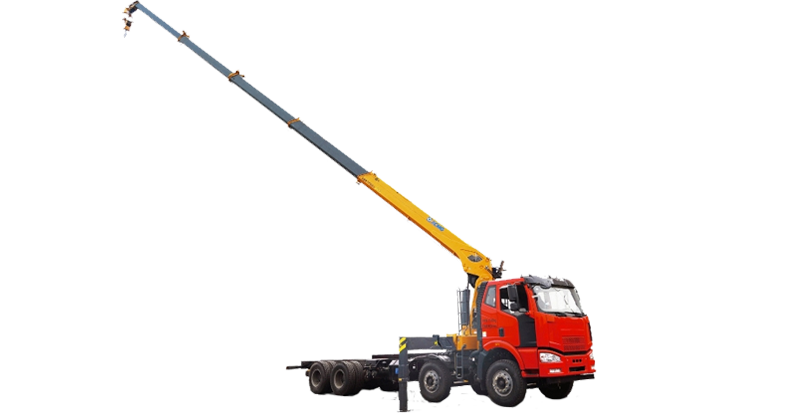

Single cylinder cable synchronous expansion and contraction, high working efficiency. Various forms of control, such as basic accelerator linkage control and turntable high seat control. The automatic hook-pulling device saves working time, prevents accidents caused by hook swings, and improves driving safety. Over-roll protection device to prevent danger caused by excessive hook recovery. The TMC can be equipped with a remote ignition and shutdown device, preventing operators from getting on and off the crane frequently.
| Item | Unit | Parameter |
|---|---|---|
| Crane weight | kg | 4337 |
| Max lifting weight | kg | 12000 |
| Max lifting moment | kn,m | 300 |
| Extension length | m | 12.9 |
| Lifting height | m | 14.7 |
| Max elevation | o | 75 |
| Oil tank capacity | L | 270 |
