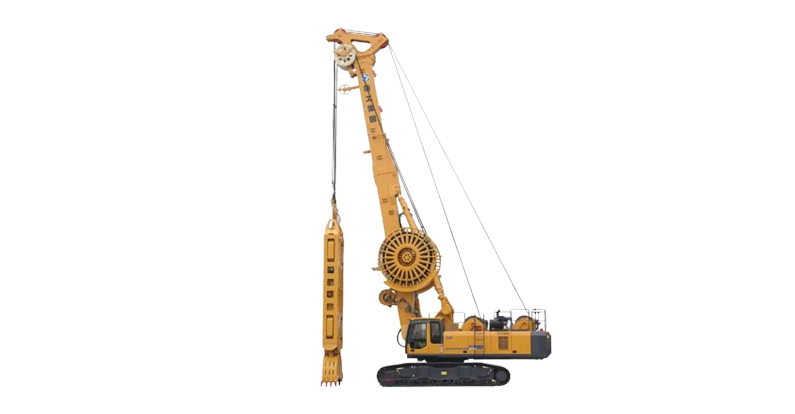

XCMG Official XG Series Underground Diaphragm Wall Hydraulic Grab XG700E
· Mature “H” type telescopic track chassis, unfold width 3500-4900mm, wheel distance 5600mm, can be equipped with dump leg structure, construction safety, and stability, easy to disassemble and transport.
· Rear double roll up single row rope structure, solve the problem of biting rope grinding rope, avoid the risk of falling off the bucket, improve the service life of wire rope 1-3 times.
| Project | Unit | Parameters | |
|---|---|---|---|
| The working parameters | Wall thickness | mm | 800-1500 |
| Wall depth | m | 105 | |
| Maximum lift force | Kn | 2×350 | |
| Maximum lift/drop speed | m/min | 40/80 | |
| Hydraulic system pressure | Mpa | 32 | |
| The working radius | mm | 4800-5800 | |
| Engine parameters | Model | - | Volvo-TAD1352VE |
| Rated power | kW/rpm | 315/1900 | |
| Chassis parameters | Maximum walking speed | km/h | 1.5 |
| Maximum climb | % | 30 | |
| Minimum off-site clearance | mm | 450 | |
| Track plate width | mm | 800 | |
| Track spacing | mm | 3500-4900 | |
| Form factor (Long X Weight X Height) | The working state | mm | 11500×4900×18900 |
| The shipping status | mm | 16100×3500×3560 | |
| The working weight of the whole machine | t | 128 | |
