  Products  Piling Machinery  XR Series Rotary Drilling Rig  XR240E

XR Series Rotary Drilling Rig

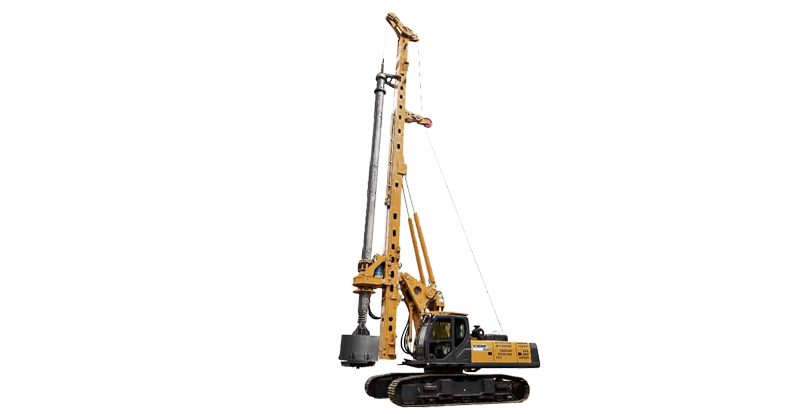

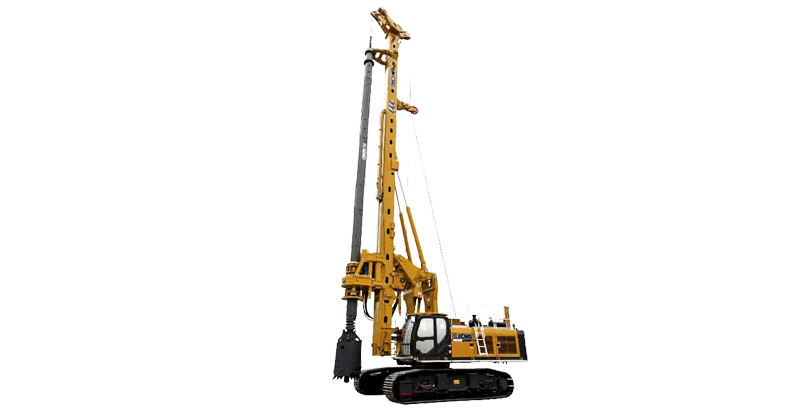

XR240E

Maximum drilling diameter（mm）

2200 / 2000
Maximum drilling depth（m）

70
Rated power（kW）

270

Request a Quote

XR240E

FEATURE
Parameter
Inquiry
recommend

FEATURE

XCMG 240kn Hydraulic Dual Rotary Drilling Rig Bored Pile Machine XR240E

Performance Characteristics:
XCMG 240kn Hydraulic Rotary Drilling Rig XR240E As a multi-function machine, it can realize the quick switching of functions such as cylinder pressurization, crowd winch pressurization, oscillator, CFA, and dual powerhead.

The capacity of the rotary drive and the main winch is increased by 20%, and the work efficiency is higher.

The rotary drive can be equipped with a torque multiplier (optional). The casing drive torque is up to 360kN-m, and the casing construction ability is stronger.

Parameter

Project		Unit	Parameters
The working parameters	Maximum drilling diameter	mm	2200 / 2000
The working parameters	Maximum drilling depth	m	70
Engine parameters	Model	-	6UZ1X
Engine parameters	Rated power	kW	270
Powerhead parameters	Maximum output torque	kN.m	240
Powerhead parameters	Speed	r/min	7-30
Pressurized cylinder parameters	Maximum pressure	Kn	210
	Maximum lift force	Kn	220
	Maximum travel	m	5
Pressurized roll-up parameters	Maximum pressure	Kn	250*
	Maximum lift force	Kn	250*
	Maximum travel	m	13*
The main roll-up parameter	Maximum lift force	Kn	240
The main roll-up parameter	Maximum roll-up speed	m/min	70
Sub-roll-up parameters	Maximum lift force	Kn	80
	Maximum roll-up speed	m/min	70
	Drill mast tilt side/forward/back tilt	°	4/5/15
Chassis parameters	Maximum walking speed	km/h	1.8
	Maximum climb	%	35
	Track plate width	mm	800
	The maximum total width of the track	mm	3250-4400
System parameters	Work pressure	MPa	35
System parameters	The quality of the whole machine	t	84
Dimensions	The working state	mm	8870 x 4400 x 22800
Dimensions	The shipping status	mm	17525 x 3250 x 3594
